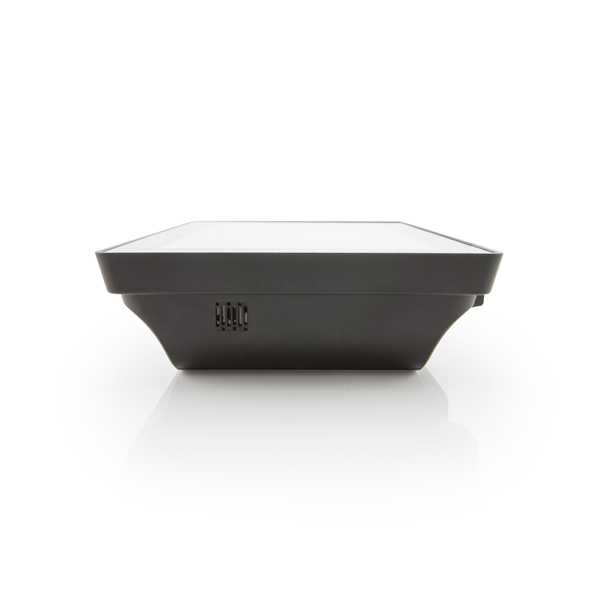

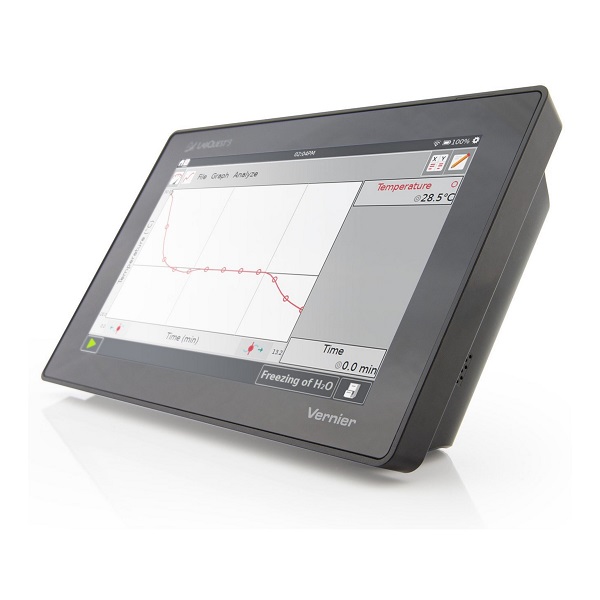

LabQuest 3

18,000 ฿

เครื่องเก็บข้อมูลทางวิทยาศาสตร์ แบบพกพาได้ พร้อม Software สำหรับการวิเคราะห์ หน้าจอสัมผัส

SKU: LABQ3 Category:

all-new LabQuest 3 เป็นแพลตฟอร์มการรวบรวมข้อมูลแบบสแตนด์อโลนที่นักเรียนสามารถใช้เพื่อรวบรวมวิเคราะห์และโต้ตอบกับข้อมูลได้อย่างมีประสิทธิภาพ ด้วยหน้าจอสัมผัสแบบ Capacitive ใหม่ นักเรียนสามารถใช้แพลตฟอร์มได้อย่างง่ายดายและด้วยความสามารถแบบไร้สายนักเรียนจึงสามารถรวบรวมข้อมูลได้ทุกที่ด้วย LabQuest 3 เชื่อมต่อแบบไร้สายกับเซนเซอร์ Go Direct®ทั้งตระกูลแพลตฟอร์มที่ใช้งานง่ายช่วยให้นักเรียนสร้างกราฟและวิเคราะห์ผลลัพธ์ทางเลือกที่ดีเยี่ยมสำหรับห้องปฏิบัติการ ห้องเรียนหรือกิจกรรมในภาคสนาม

Key Features

  • Full-featured data-collection platform
  • Compatible with all Vernier sensors
  • Large, high-resolution color screen
  • Touch navigation utilizing gestures
  • Fast data collection with 100,000 samples per second
  • Rechargeable, high-capacity battery
  • Built-in GPS and microphone
  • Wireless connectivity with Wi-Fi and Bluetooth® wireless technology
  • Built-in apps include Calculator, Periodic Table, Sound Recorder, Stopwatch, and more
  • Student instructions for over 75 of our most popular experiments included

Connectivity to Chromebooks, Computers, iPad® tablets, and Mobile Devices

Students can share real-time data with multiple devices for a truly hands-on, collaborative learning experience. Use LabQuest 3 to transfer data wirelessly to computers, Chromebooks, or mobile devices running Graphical Analysis™ 4.

USB Sensor Interface

If you want to use your own computer or Chromebook™ to collect data, use LabQuest 3 as a conduit between our LabQuest sensors and these devices. LabQuest 3 works as a USB sensor interface with our Logger Pro® software or Graphical Analysis 4 app.

Weight 0.549 kg

Specifications

Display

  • 15.41 cm x 8.59 cm (17.64 cm diagonal) screen
  • LED backlight
  • Landscape screen orientation

Processor

  • 2 GHz Application Processor

Connectivity

  • Wi-Fi 802.11 b/g/n @ 2.4GHz
  • Bluetooth® wireless technology

Touch Interface

  • Capacitive touch screen
  • Touch navigation utilizing gestures, including the following. For a full list, see the user manual.
    • Single tap—Use a single tap to interact with most objects on the device.
    • Touch and drag—Use touch and drag to select regions on a graph or to scroll through menus.
    • Long Press—Use the long press to activate special functionality on some objects such as holding down the keyboard shift key to enable shift lock, or to initial a table selection.
    • Two-Finger Pinch/Zoom/Pan—Use this gesture to manually scale graphs or pan the data table.
    • Double tap—Double tap to scale the graph to fit the data or to edit elements of the data table such as cell data (when allowed), column name, or dataset name.
    • Single-finger swipe (from edges)—This gesture is used to change what app is displayed.

Data Acquisition

  • 100,000 samples per second
  • 12-bit resolution
  • Built-in GPS and microphone

Environmental Durability

  • Operating temperature: 0 – 45°C
  • Storage temperature: -30 – 60°C
  • Splash resistant
  • Rugged enclosure designed to withstand a fall from lab bench

Size and Weight

  • Size: 11.7 cm x 19.0 cm x 4.0 cm
  • Weight: 549 g

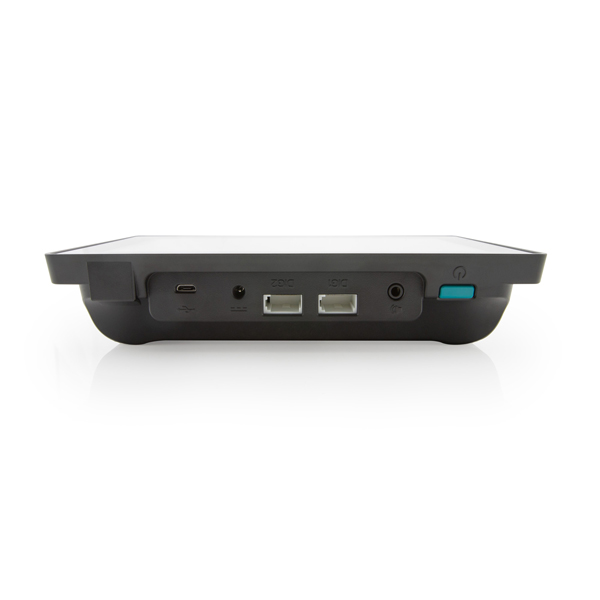

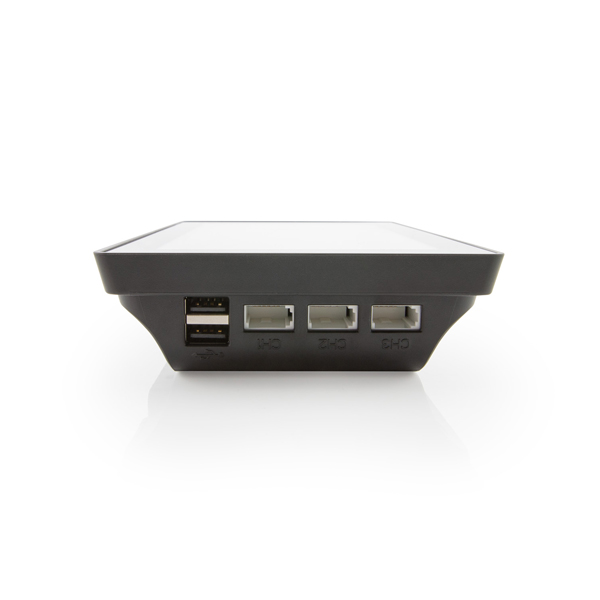

Ports

  • 3 analog ports
  • 2 digital ports
  • 2 full-size USB ports for sensors
  • Micro USB port for computer communication
  • Audio out
  • DC power port

Storage

  • 500 MB
  • Expandable with USB flash drive

Power

  • Rechargeable, high-capacity battery
  • DC charging/powering through external adapter (included)

What's Included

Software

Software

Analysis Features

  • Perform linear and curve fits
  • Draw a prediction before collecting data
  • Display two graphs at once
  • Display a tangent line on the graph
  • Display integral functions
  • Analyze statistics
  • Perform FFT analysis

Built-In Applications

  • Stopwatch
  • Periodic Table
  • Sound Recorder (for voice annotation)
  • Scientific Calculator
  • Audio Function Generator
  • Power Amplifier (requires Vernier Power Amplifier)

Versatile Tools and Resources

  • More than 75 preloaded lab instructions from our popular lab books
  • Notes field
  • Email screenshots and data files for use in lab reports or submit directly to an instructor
  • Export data to Logger Pro, Excel®, and other data analysis software
  • Stream data wirelessly to computers, Chromebooks, and mobile devices running our Graphical Analysis 4 app.

USB Interface Compatibility

You can also use LabQuest 3 as a computer interface using the Graphical Analysis 4 app or Logger Pro 3 software.

Graphical Analysis 4 App for Computers and Chromebooks

Collect and analyze sensor ‭data with our free Graphical Analysis 4 app ‭for Chrome‭™‭, ‭Windows®, macOS®‭, iOS‭®‭, and Android‭™‭. Use LabQuest 2 as a USB sensor interface on a computer or Chromebook.

Learn more about Graphical Analysis 4

Logger Pro 3 Software for Computers

Our award-winning Logger Pro 3 software provides advanced analytical features including video analysis. One copy of Logger Pro includes a site license for all computers in your school or your college department, as well as students’ personal computers.

Learn more about Logger Pro 3
